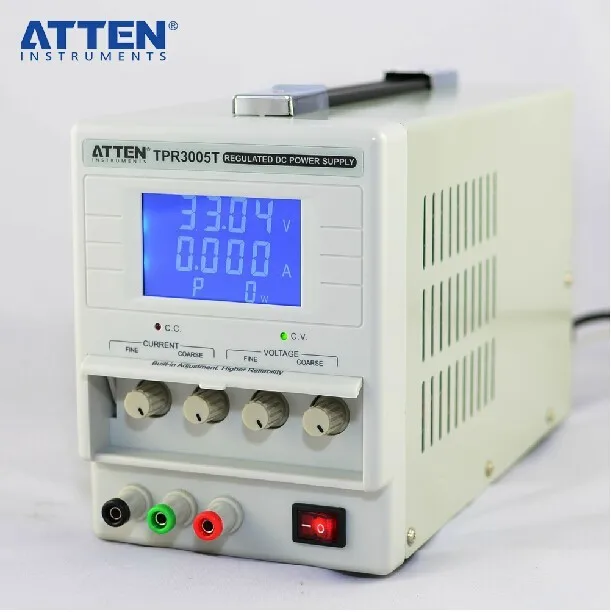

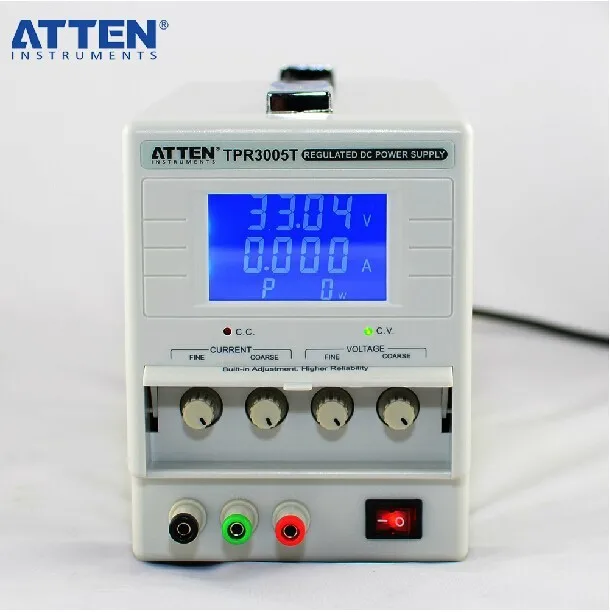

TPR3005T 30V/5A DC POWER SUPPLY

TPR3005T 30V/5A DC POWER SUPPLY

34,200 DZD
No tax

TPR3005T 30V/5A DC POWER SUPPLY

Status: Last items in stock

Categories:
Tags: No tags
Brand: ATTEN

Model: TPR3005T


Overview
TPR3005T DC power supply is a high precision and high reliability of the constant voltage constant current power supply, which has a limiting step, short circuit protection, over-temperature protection, with a load capacity and other characteristics. This series of power supplies for laboratory, electronics production lines, maintenance of communications equipment, scientific research, production, teaching and other units necessary equipment. Operating conditions such as power supply overheating, the output in the output circuit cut-off, when the internal temperature returned to normal, the power output to restore the default state. The machine has perfect protection function to protect user equipment from being destroyed.

Specifications
1 rated operating conditions and Dimension
supply voltage: 220V+- 5% 50Hz (110V can be customized according to requirements+-5% 60Hz)
Working conditions: Temperature 0 C~ 40C Relative humidity <80%
storage conditions: temperature -20 C ~ 80C Relative humidity< 80 %
Rated output power: 150W

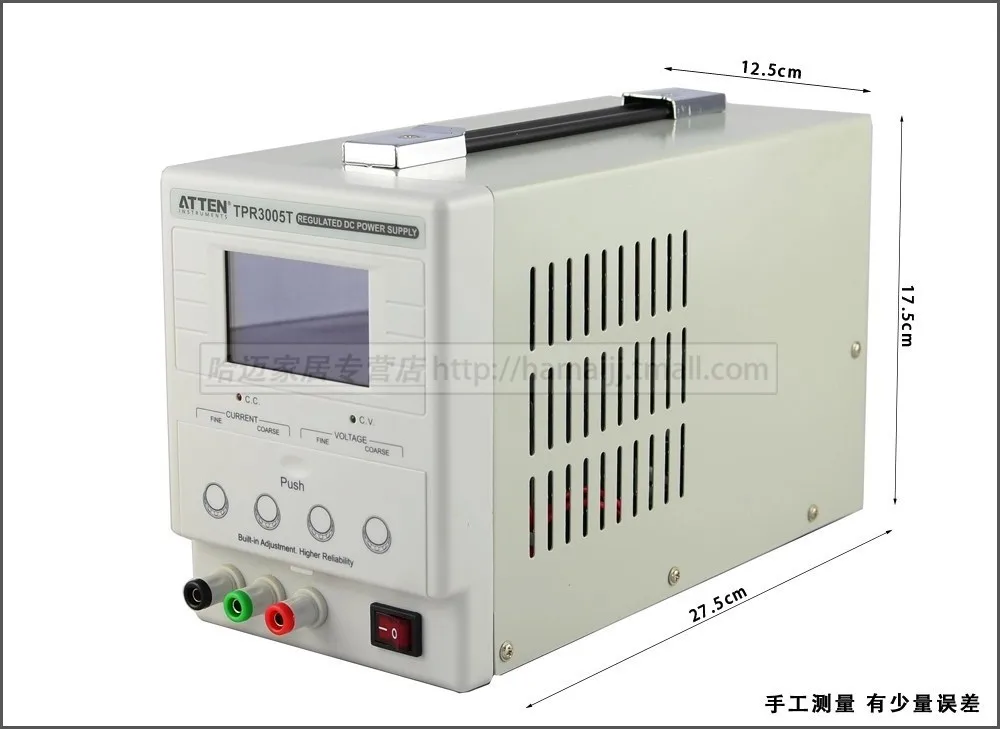

Dimensions: 275 *125* 70 (L* W* H) mm

2. Technical parameters
Output voltage from 0 ~ 30V continuously adjustable between
output current from 0 ~ 5A adjustable
Power between the effects of: CV ≤ 0.01% +1 mV CC ≤ 0.2% +1 mA
Load effect: CV ≤ 0.01% +5 mV (I ≤ 3A)
CC ≤ 0.2% +5 mA (I ≤ 3A) CV ≤ 0.01% +7 mV (I> 3A)
CC ≤ 0.2% +7 mA (I> 3A)
Ripple noise: CV ≤ 0.5mVr.ms (I ≤ 3A)
CC ≤ 3mAr.ms (I ≤ 3A)
( 5Hz ~ 1MHz) CV ≤ 1mVr.ms (I> 3A)
CC ≤ 5mAr. ms (I> 3A)
voltage accuracy:+- 0.5% rdg +2 words
Current Accuracy:+- 0.5% rdg +2 words
Digital resolution:+-0.5% rdg +2 words
high-pressure test: leakage current ≤ 1mA (Test conditions: Input to 1700VAC/2s)
Insulation Resistance: Insulation resistance ≥ 7MΩ (test conditions: Input to 500VDC/5s)
work: constant voltage / constant current
protection mode: current-limiting step, short circuit protection, over temperature protection , over-voltage protection
Cooling: air-cooled
