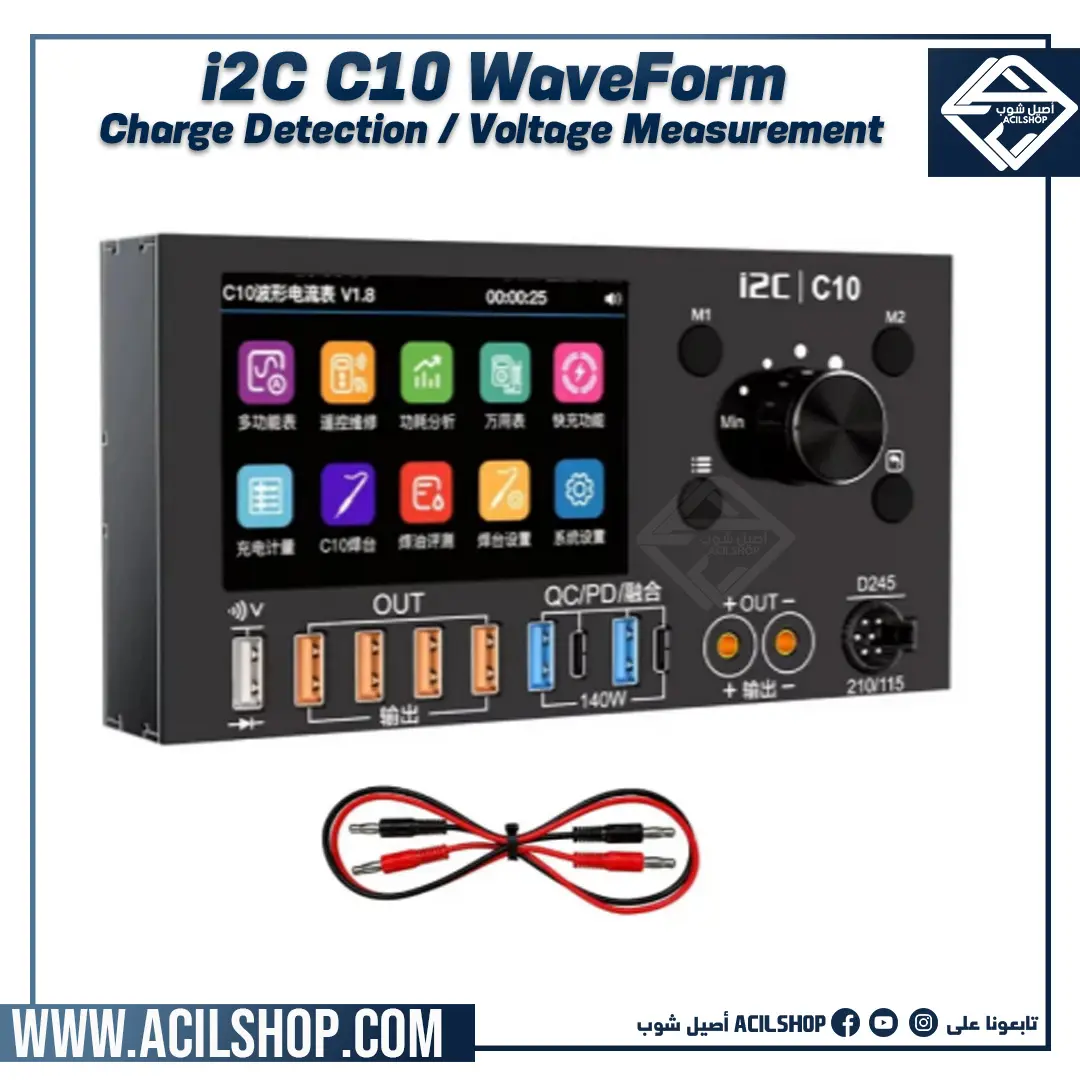

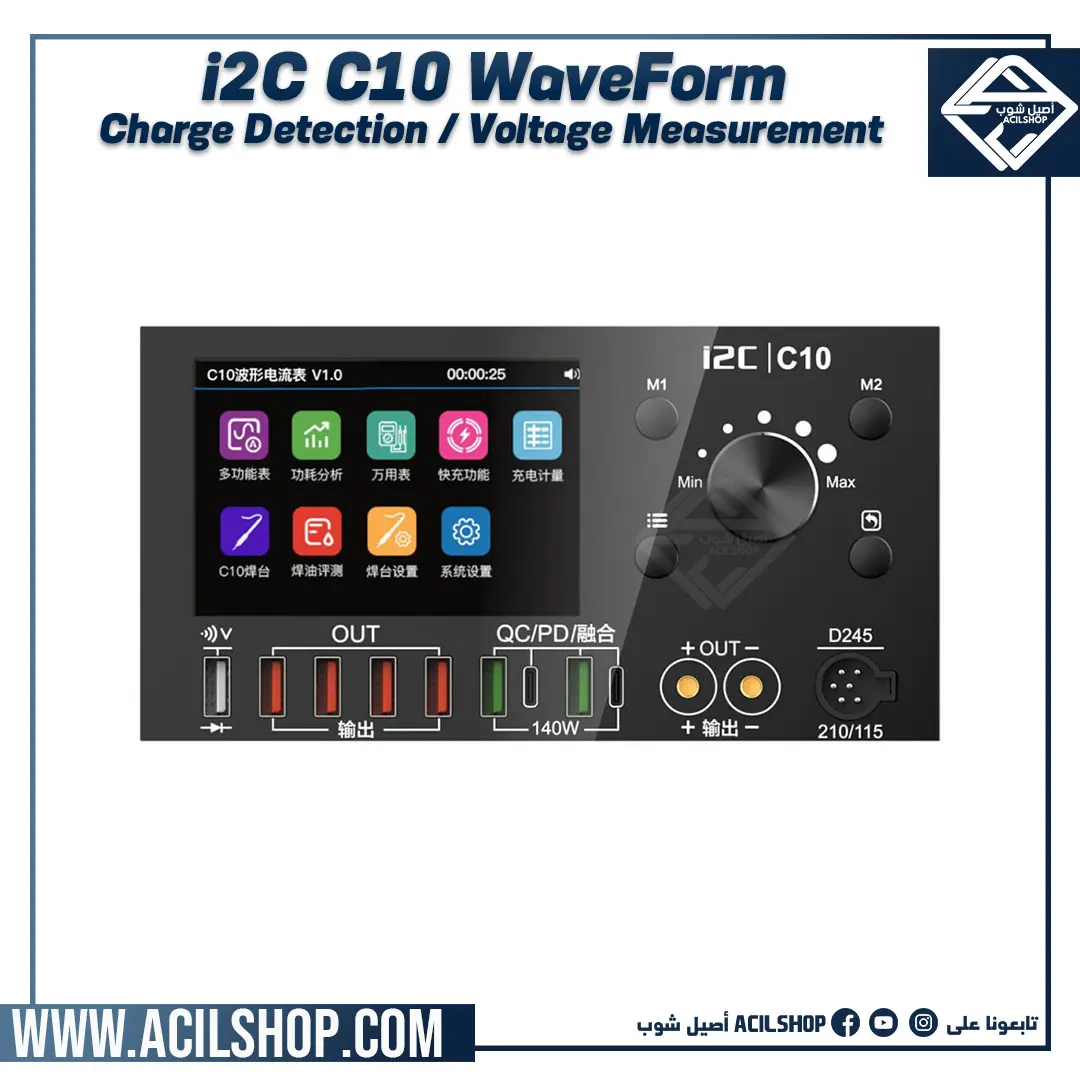

i2C C10 Ultra-high Precision Digital Waveform Ammeter with Charge Detection / Voltage Measurement

i2C C10 Ultra-High Precision Digital Waveform Ammeter with Charge Detection / Voltage Measurement

Features:

• C10 waveform ammeter, ultra-high precision 0.1uA-8A current

• Easy to find leakage: Accurate and reliable measurement data helps you complete your work efficiently

• Switchable range data interface: You can choose according to your needs

• Supports live streaming and screen projection: When live broadcasting maintenance, the data can be projected onto the screen so that fans can see it more clearly

• Multi-protocol super fast charging: Support PD3.1/PE2.0/BC1.2/FCP/SCP/QC3.0VOOC/Super VOOC, and other charging protocols

• Support D115/D210/D245 controllers

• C10 soldering station features: Pick up the handle, and it will heat up in 1 second, tin in 3 seconds, and automatically sleep when you put down the handle. Support temperature curve, temperature grouping, and new UI interface

Specification:

• Brand: i2C

• Name: C10 Waveform Ammeter

• Soldering station input voltage: DC 24V/5-15A

• PD3.1 Charging input voltage: DC 30V/10-15A

• C10 soldering station output power: D245: 180W; D210: 100W; D115: 50W

DC voltage and current Measurement parameters:

• Input voltage: 0~36V

• Input current: 1uA~8A

• Voltage resolution: ≥0.1V

• Current resolution: ≥0.1uA

Multimeter companion measurement parameters:

• Buzzer gear: 0 ohm resistance

• Diode: 0.001~1999

• DC tes: 0~24V

• Resistance range: 0~50K
