Product details

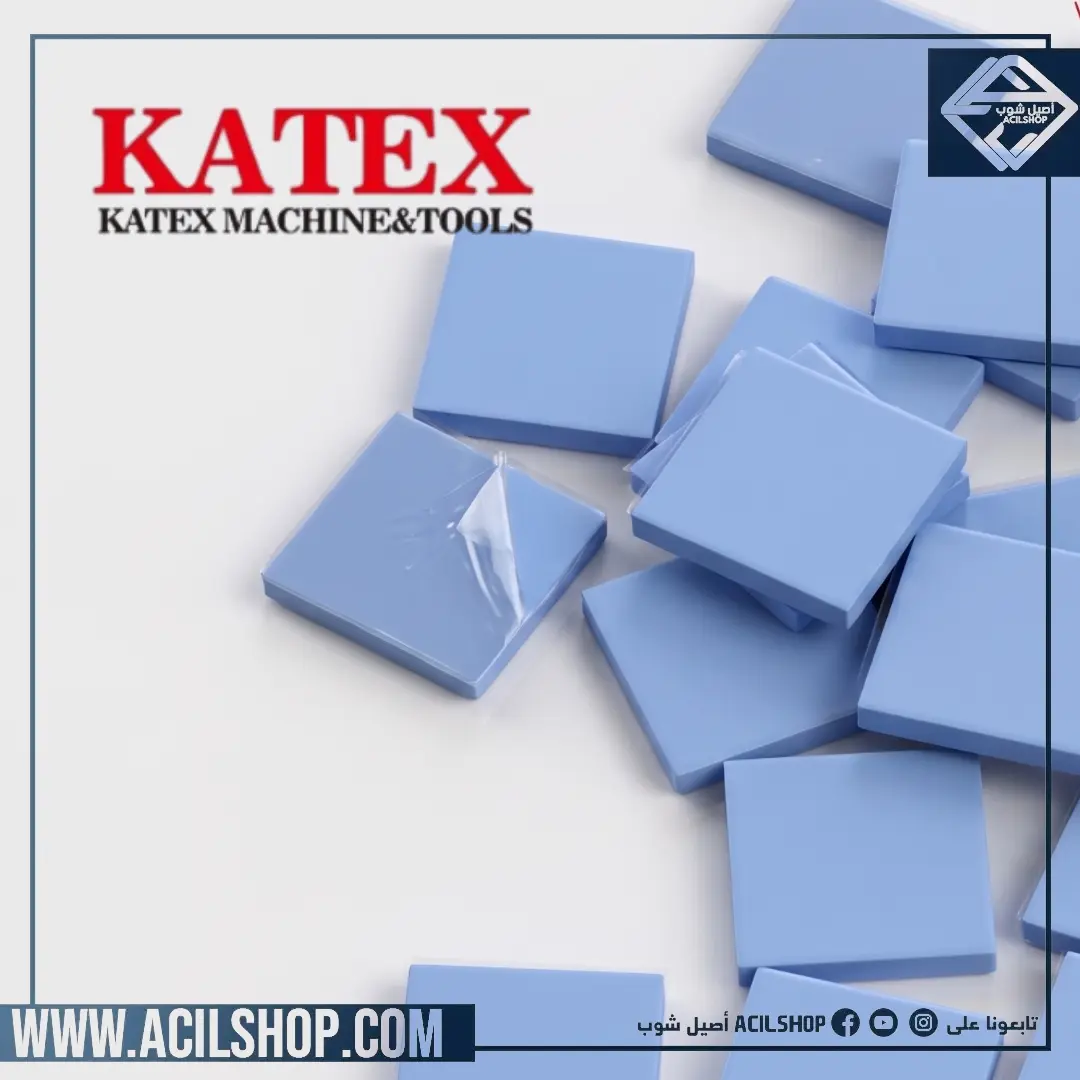

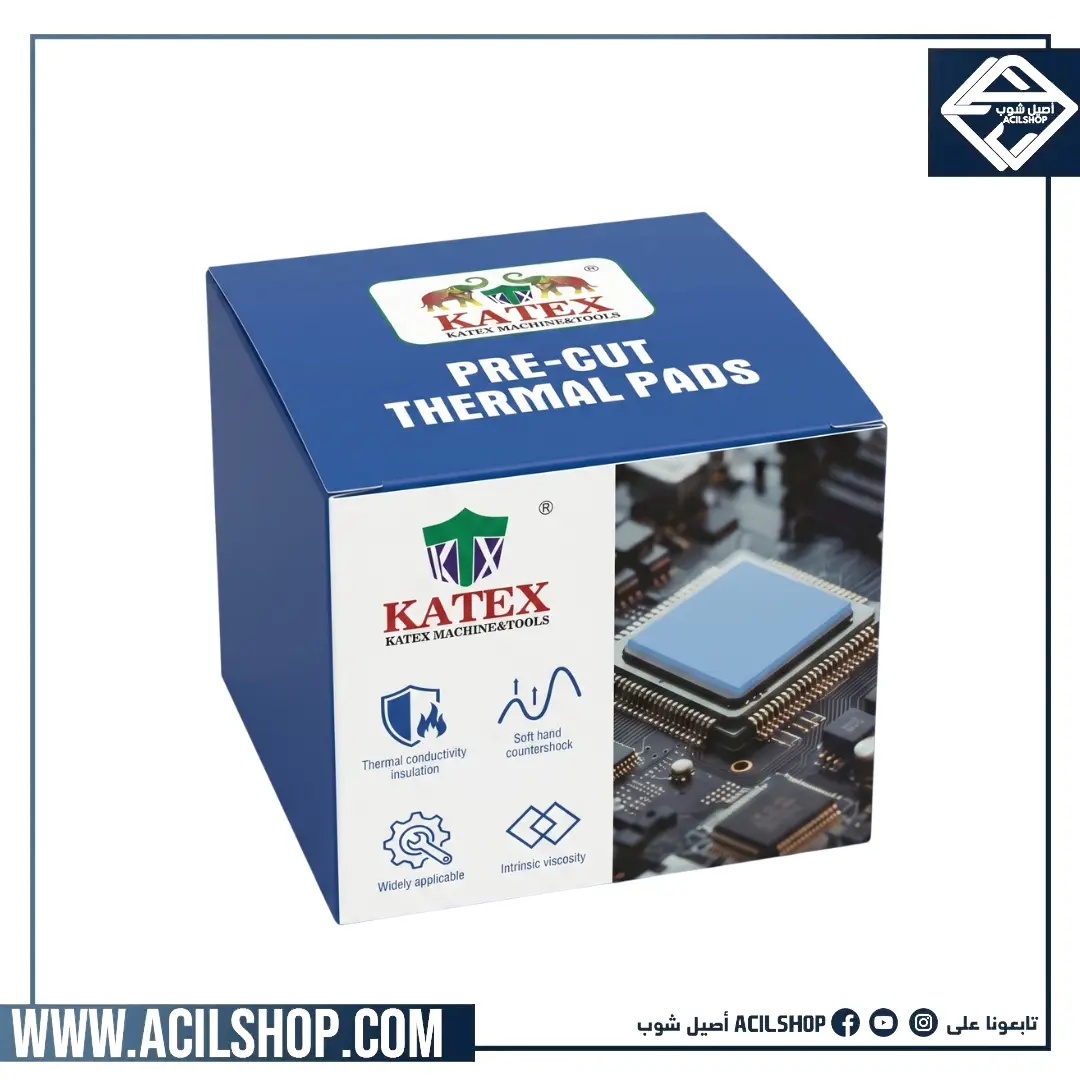

The KATEX KT-59 series consists of high-performance pre-cut thermal pads designed for efficient heat transfer between electronic components (like CPUs, GPUs, or RAM) and their respective heatsinks. These are particularly favored in mobile phone repair and laptop maintenance due to their precision sizing.
Product Overview
Unlike generic thermal sheets, the KT-59 pads come in pre-cut dimensions tailored for specific industrial and consumer electronics standards. They serve as a high-quality “gap filler” that replaces or upgrades factory thermal interfaces that have dried out or lost effectiveness.
Key Specifications
Material: Specialized silicone-based polymer infused with thermally conductive ceramic fillers.
Standard Thicknesses: Commonly available in 0.5mm, 1.0mm, and 1.5mm variants to accommodate different mechanical gaps.
Thermal Conductivity: Typically rated between 4.0 W/mK and 6.0 W/mK, providing a significant upgrade over standard stock pads.
Consistency: Soft and highly compressible (Shore 00 hardness), allowing them to conform to uneven surfaces without putting excessive mechanical stress on delicate solder joints.
Common Repair Applications
Smartphone Logic Boards: Used on EMI shields or directly on processors to dissipate heat into the device chassis.
Laptop Maintenance: Ideal for VRAM chips and VRM (Voltage Regulator Modules) where height tolerances are strict.
SSD Cooling: Applied to M.2 NVMe drives to prevent thermal throttling during heavy data transfers.
Game Consoles: Frequently used in PlayStation and Xbox HDMI chip or memory chip replacements.
Usage Tips for Repair Techs
Surface Prep: Always clean both the chip and the heatsink with 90%+ Isopropyl Alcohol to remove old residue before applying the KT-59.
Size Matching: Ensure you select the correct thickness. A pad that is too thin won’t make contact (causing overheating), while one that is too thick can bend the board or prevent the heatsink from seating properly on the main processor.
Non-Conductive: These pads are electrically insulative, meaning they will not cause a short circuit if they touch nearby pins or components.
