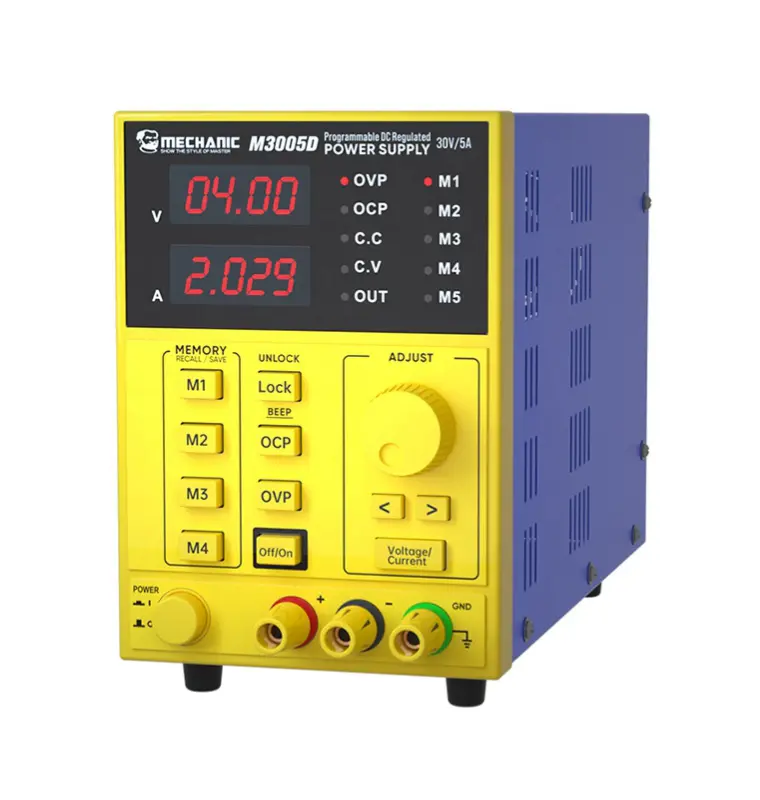

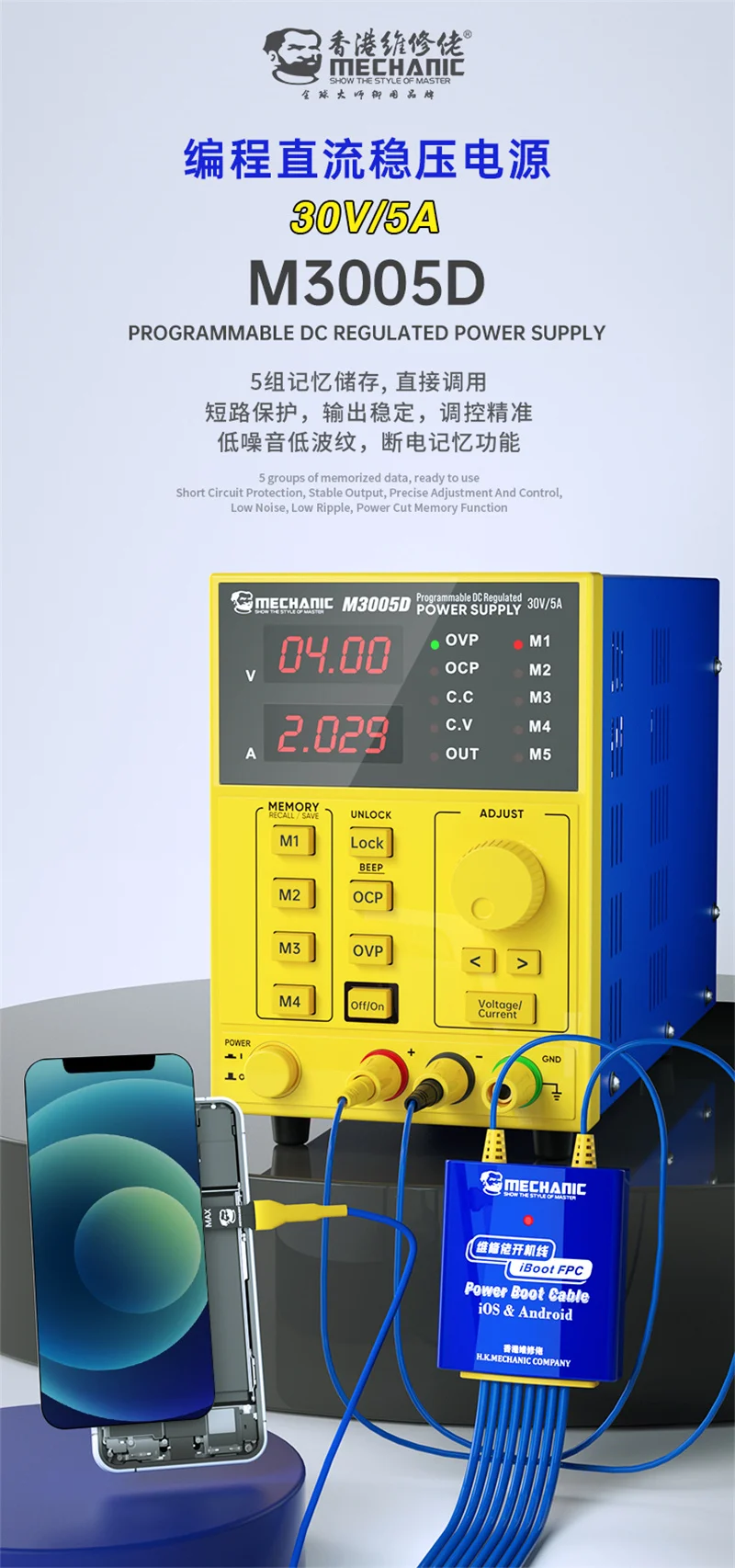

MECHANIC M3005D+ Programmable DC Regulated Power Supply

Mechanic M3005D 30V/5A Multifunctional Programmable DC Stabilized Power Supply

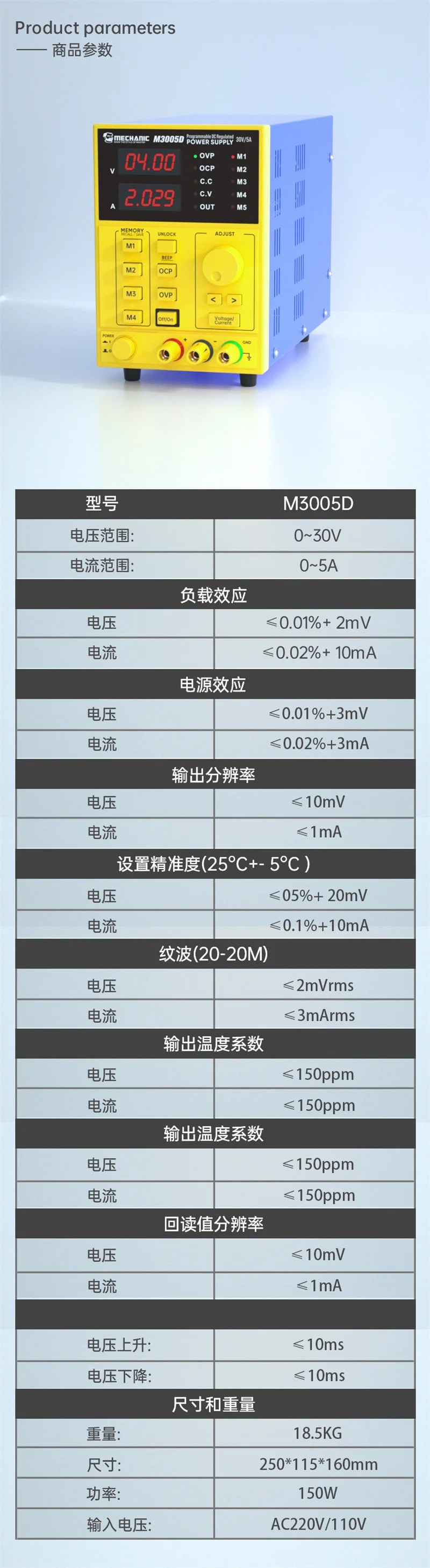

Specification:

• Model: M3005D

• Input voltage:AC 220V/110V

• Power: 150W

• Voltage range: 0~30V

• Current range: 0~5A

• Effect of voltage: <0.01%+ 2mV

• Effect of current: <0.02%+ 10mA

• The power effect of voltage: <0.01%+3mV

• The power effect of current: <0.02%+3mA

• Output resolution of voltage: <10mV

• Output resolution of current: <1mA

• Setting accuracy of voltage: <05%+ 20mV

• Setting accuracy of current: <0.1%+10mA

• Ripple of voltage: <2mVrms

• Ripple of current: <3mArms

• Output temperature coefficient of voltage: <150ppm

• Output temperature coefficient of current: <150ppm

• Read back value resolution of voltage: <10mV

• Read back value resolution of current: <1mA

• Weight: 18.5KG

• Size: 250*115*160mm



Package includes:

• 1 x Power Supply

• 1 x Power cable
