Product details
Description

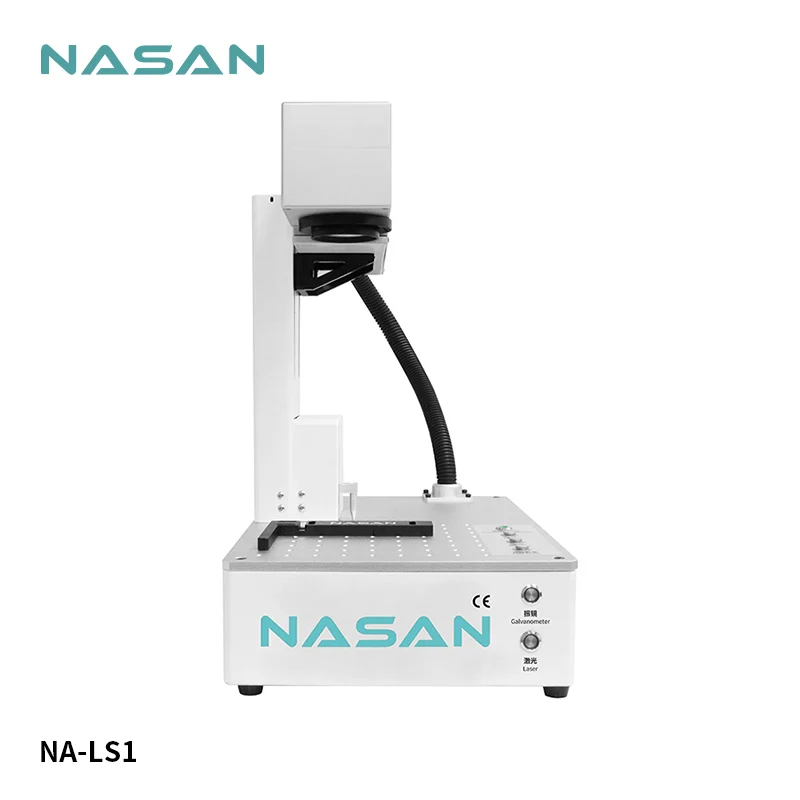

Product Name | Laser Separating machine |
Model | NA-LS1 |
Function | LCD glass & Back cover separating;Customize symbol/Logo Marking |
Voltage/Plug | 110V/220V Optional EU/USA/UK Optional |
Equipment /Packing size: | 300*496*549 mm/320*519*600mm |
Net/Gross Weight: | 25kg/32kg |
Optical Maser | Laser Diode，LD |
Laser Watt | 4.5W |
Position | Manualy |
Pulse Width(ns) | ~5ns |
Peak Power(kW) | ~36kW |
Repetition Rate(kHZ) | ~25kHZ |
Transverse Mode | TEMoo |
Full Angle Divergence | ＜1.5 |
Wave Length | 1.06μm |
Marking Depth | 0.015-0.5mm |
Max Marking size | 175*175mm |
Light Spot | Φ0.05-0.01mm |
Precision | ≤0.001mm |
Repeat Marking Precision | ≤0.001mm |
Marking Speed | ≤10000mm/s |
Estimated Life Time Of Laser (Hours) | 20000hours |
Packing | Carton box |
Certifficate | CE |
Efficiency | 5mins per piece |
